Product Details

timken QVVFX26V408S Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block

Brand Name timken
Model Number QVVFX26V408S
Min.Order Quantity 1 pcs
Price Negotiable

Product Features

timken QVVFX26V408S bearing Size Chart (mm/inches)

d40 mm
D90 mm
B23 mm
d154.7 mm
D177.1 mm
rs min1.5 mm
Radial clearance classC3
Mass0.64 kg
Dynamic load, C40.4 kN
Static load, C024.1 kN
Fatigue limit load, Cu1.1 kN
f013.2
Nref9,000 rpm
Nlim10,000 rpm
Min operating temperature, Tmin-20 °C
Max operating temperature, Tmax120 °C
Characteristic cage frequency, FTF0.38 Hz
Characteristic rolling element frequency, BSF4.11 Hz
Characteristic outer ring frequency, BPF03.08 Hz
Characteristic inner ring frequency, BPFI4.92 Hz
da min48 mm
da max54.7 mm
Da max82 mm
ra max1.5 mm

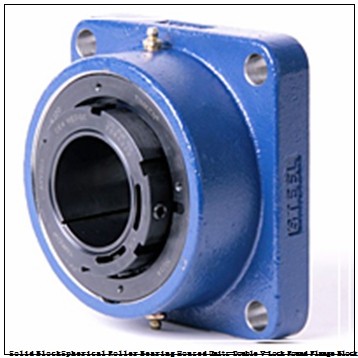

timken QVVFX26V408S Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block

timken QVVFX26V408S Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block Cad Models
